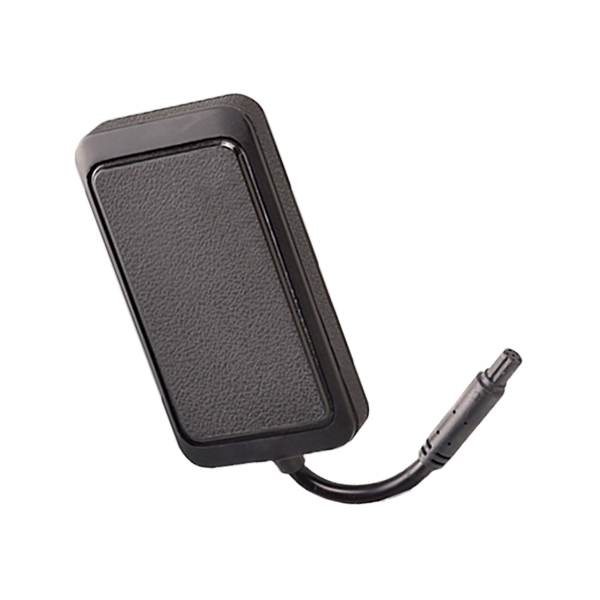

DGt1 - Vehicle Tracking Device with Immobilizer

The Immobilizer

DGt1s wide voltage range ensures that it gives a stable performance in all kinds of vehicles including e-bikes, motorcycles, cars, SUVs, Pickups and even trucks of all sizes. Due to this DGt1 meets a wide variety of requirements at all levels of operations in personal as well as corporate scenarios.

Although it’s small and compact in size, its advanced electronic circuit design with in-built battery not only makes it a great GPS tracking device but also gives features like Remote Engine/Fuel Cut off, Geo Fence, Various alerts like Over speed, Power cut off, Low Battery etc. along with historical data upload and much more.

Read more ...


Light & Compact

Small size but consists of the required functions which makes it easy to use for Fleet Managers as well as individual users.

Hidden LEDs

Diagnostic LEDs are hidden inside the device & hence are invisible to outsiders.

Voltage Range

A wide operating voltage of 9V to 90V allows it to be used with almost every kind of vehicle.

Remote Immobilization

Using the mobile app users can remotely shut down the vehicle's engine from anywhere.

IPx5 Waterproof

IPx5 design ensures that the device functions even in tougher environments without getting affected by splashes or dirt.

Recommended usage of DGt1 includes:

Pickups
Trucks
Buses
HCVs

"A wonderful serenity has taken possession of my entire soul, like these sweet mornings of spring which I enjoy with my whole heart. I am alone, and feel the charm of existence in this spot"


Technical Specifications:

GSM frequency: 850/900/1800/1900 MHz

Memory: 32+32 Mb

Max output: GSM850/GSM900:33±3dBm

Max frequency error: ±0.1ppm

Frequency: L1,1575.42MHz C/A code

Location accuracy: upto 10 meters

Tracking sensitivity: -165dBm

Stand by current: ≤5mA

TTFF (open sky): Avg. hot start≤1sec

Battery: 270mAh/3.7V Li-Polymer battery

Standby time: 43 hours

Device Weight: ~38gms.

GPRS: Class 12, TCP/IP

Phase error: RMSPE5,PPE20

Receive sensitivity: Class II RBER2%(-102dBm)

Max output: GSM1800/GSM1900:30±3Bm

GPS chipset: MTK high sensitivity chip

Number of GPS channels: 66

Acquisition sensitivity: -148dBm

Working voltage/current: 9-90VDC/7mA (60VDC)

TTFF (open sky) Avg. cold : start≤35sec

Operating temperature: -20℃~ 70℃

Working time: 3.6 hours

Device Dimension: 78.0(L)*41.0(W)*13.0(H)mm
